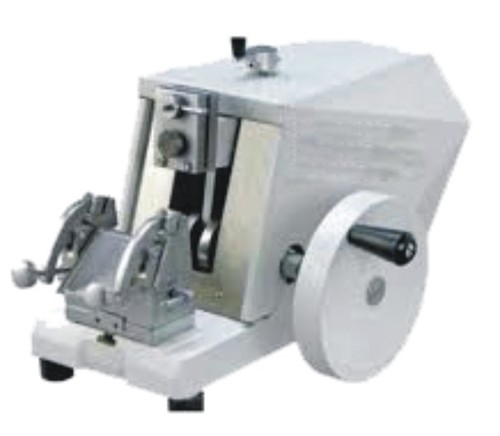

Semi Automatic Microtome

Get a Price/Quote

Semi Automatic Microtome Specification

Automation Grade
Semi Automatic

Temperature Range
Ambient to -10C

Feature
Highly Efficient

Frequency
50 Hz

Voltage
220 V

Measurement Range
0.5 m 100 m

Core Components
Precision Cutting Mechanism, Motorized Drive, Specimen Holder

Model No
SA-560

Capacity
Not Specified

Power Source
AC Mains

Accuracy
100 %

Equipment Materials
Stainless Steel, Alloy, ABS Plastic

Type
Semi Automatic Microtome

Usage
Laboratory

Display Type
LED digital

Dimension (L*W*H)
460 x 300 x 270 mm

Weight
Approx. 25 Kg

About Semi Automatic Microtome

Microtome at a Glance

LCD display with feather touch keypad.

Cutting / trimming mode.

Fast Forward / Backward Function.

Increase/Decrease section thickness.

Retraction can also be adjusted.

Section counter / section thickness display.

Motorized feed drive.

Finger protection guard.

TECHNICAL SPECIFICATION
Specifications	SSI/97	SSI/98	SSI/99
Operation	Manual	Semi Automatic	Fully Automatic
Section thickness range	0.5-60 µm	0.5-100 µm	0.5-100 µm
Setting value increments	0.5-2µm in 0.5µm 2-20µm in 1µm 20-60µm in 5µm	0.5-5µm in 0.5µm 5-20µm in 1µm 20-60µm in 5µm 60-100µm in 10µm	0.5-5µm in 0.5µm 5-20µm in 1µm 20-60µm in 5µm 60-100µm in 10µm
Disposable blade	Low / High Profile	Low / High Profile	Low / High Profile
Minimum setting value	0.5µm	0.5µm	0.5µm
Trimming thickness setting range	1-60µm	1-600µm	1-600µm
Horizontal feed	26-28mm	28mm	28mm
Vertical specimen stroke	60mm	60mm	60mm
Specimen retraction	Optional	5-100µm in 5µm	5-100µm in 5µm
Lockable hand wheel	Yes	Yes	Yes
Microprocessor bases control system	N.A	Yes	Yes
Razor holder for knife	Optional	Optional	Optional
Safety alarm	N.A	Yes	Yes
Emergency stop	N.A	N.A	Yes

Precision Cutting for Consistent Results

Equipped with a precision cutting mechanism and motorized drive, the SA-560 delivers highly accurate and repeatable sections. The universal knife holder supports both disposable and steel knives, catering to diverse laboratory requirements. Section thickness settings range from 0.5 to 100 m, enabling detailed sample analysis.

Advanced Safety and Cooling Features

This microtome incorporates comprehensive safety elements such as an emergency stop and knife guard, ensuring operator protection. The integrated Peltier cooling system maintains specimen quality during sectioning, with temperature control from ambient to -10C, ideal for sensitive biological samples.

Multi-mode Operation and User-friendly Design

The SA-560 offers both manual and motorized operation modes to suit user preferences. Its LED digital display enhances usability, while noise levels remain under 55 dB. Crafted from robust materials, the design balances durability with laboratory efficiency.

FAQs of Semi Automatic Microtome:

Q: How does the specimen orientation system work on the SA-560 microtome?

A: The SA-560 microtome provides specimen orientation along both X and Y axes with fine adjustment, allowing operators to precisely position samples for accurate sectioning.

Q: What types of knives are compatible with the universal knife holder?

A: The universal knife holder on the SA-560 accommodates both disposable and steel knives, offering flexibility to meet varying laboratory sectioning requirements.

Q: What process is involved in adjusting section thickness and how accurate is the setting?

A: Operators can set section thickness from 0.5 to 100 m in precise 0.5 m increments using the LED digital display, ensuring highly accurate sectioning suitable for a range of applications.

Q: Where is this microtome typically used, and who are the main users?

A: This semi-automatic microtome is primarily utilized in laboratories across India by manufacturers, suppliers, traders, and research professionals involved in histology, pathology, or material science.

Q: What benefits does the integrated Peltier cooling system provide?

A: The integrated Peltier cooling system maintains specimen integrity during sectioning by controlling the temperature from ambient down to -10C, which is essential for sensitive biological samples.

Q: How does the safety interlock system contribute to user protection?

A: The SA-560 features an emergency stop button and a knife guard, enhancing operational safety by minimizing risks associated with blade exposure and machine malfunction.
