Blood Storage Cabinet / Blood Bank Refrigerator

Blood Storage Cabinet / Blood Bank Refrigerator

Product Details:

X

Product Description

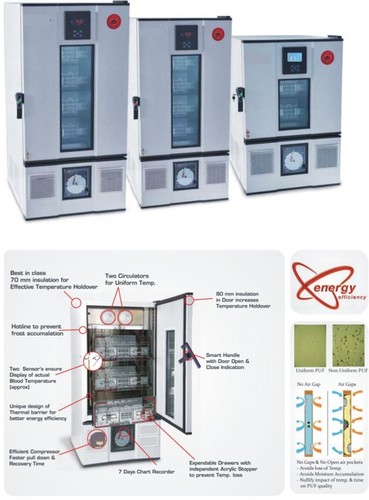

Blood Storage Refrigerators are specially designed to meet the storage requirements of whole Blood & Packed Red cells.

  1. Cabinet Construction:
    Durable, corrosion resistant materials are used to provide years of reliable performance. The outer body is made up of powder Coated CRCA Steel & internal cabinet of Stainless Steel 304 (AISI Grade, Non Corrosive and Non Magnetic). The unit is fitted in heavy duty castor wheels for ease of movement.
  2. Temperature Control & Monitoring:
    Microprocessor integrated system provides excellent temperature accuracy. 7 days circular chart recorder & audio visual alarm system helps to indicate storage conditions continuously.
  3. Variants
    REMI Blood Storage Refrigerators are available as BR &. BR Ultra variants. Both the variants are available in 5 different capacities, ranging from 56 bags to 375 Bags, to meet specific requirements of the Blood Center

Salient Features:

*Auto defrost mechanism to prevent frost formation
*Self-diagnosis & display of errors
*Safety Thermostat for avoiding negative temperature
  • Temperature set point
  • High / low temperature alarm point
  • Buzzer off time

*Audio Visual alarms for

  • Temperature high / low
  • Power failure
  • Sensor open / Short
  • Door Open
  • Compressor on (only visual)
  • Power on (only visual)
*Settable points for

Technical Specification

Particulars

BR-50

BR:50 Ultra

BR-120

BR-120 Ultra

BR-180

BR-180 Ultra

BR-240

BR-240 Ultra

BR-300

BR-300 Ultra

Temperature Control

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Display

LED

4" LCD

LED

4" LCD

LED

4" LCD

LED

4" LCD

LED

4" LCD

Internal Dimensions
W x D x H [mm]

540 x 520 x 650

660 x 765 x 650

660 x 765 x 850

660 x 765 x 1050

660 x 765 x 1250

External Dimensions
W x D x H [mm]

640 x 685 x 1185

800 x 945 x 1205

800 x 945 x 1435

800 x 945 x 1635

800 x 945 x 1835

Capacity [Liters]

120

215

310

410

500

Capacity of Blood Bags
[ 450 ml/350 ml ]

56 / 72

120 / 150

180 / 225

240 / 300

300 / 375

Number of Drawers

2

2

3

4

5

Drawer Capacity

Maximum 28 / 36 bags

Maximum 60 / 75 bags

Temperature

Preset at 4°C ± 1°C

Temperature Alarm

High 6°C & Low 2°C, Audio Visual Alarm

Internal Body Material

Stainless Steel 304 ( AISI Grade, Non Corrosive, Non Magnetic )

External Body Material

Powder Coated CRCA Steel

Insulation

50mm Cabinet & Door

70 mm minimum for Body & 80 mm for for Door, CFC free polyurethane foam

Illumination

Fluorescent Lamp

Recorder

Seven Days Circular Chart Recorder

Noise Level

Less Than 65 db(A)

Battery Backup (Controller)

Rechargeable, Fully charged Sealed Maintenance Free battery runs for more than eight hours

Line Voltage Corrector

In built of suitable rating

Power Failure Alarm

Audio Visual Alarm

Electrical

220-240 Volts, 50 Hz, SINGLE PHASE
